How to connect to your ESC.

Connect to the Link USB adaptor.

Connect the Link US adaptor to the esc.

Connect the Link US adaptor to the esc.

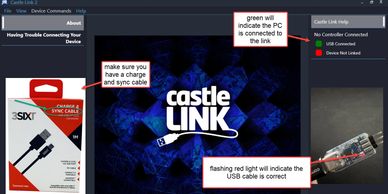

The key is to use a USB-C charge and SYNC cable. Charge cables alone will not work.

Connect the Link US adaptor to the esc.

Connect the Link US adaptor to the esc.

Connect the Link US adaptor to the esc.

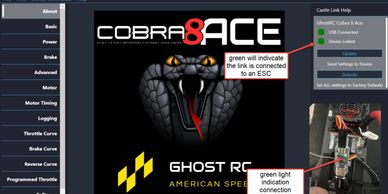

connecting to the ESC will then allow changes to be made. The ESC needs to be disconnected from the receiver and have no power from the battery supplier to it

Correct connection.

Connect the Link US adaptor to the esc.

Correct connection.

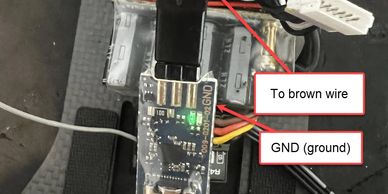

Make sure you have the Link USB correctly inserted into the RX cable.

Simple tips to calibrate your Castle ESC

Cobra 8 ACE Rev limiter

Cobra 8 ACE Programmed Curve detail

Cobra 8 Data logging setup and over view

Ghost Rc Corba 8 Programmed Throttle tuning

Basic tuning tips

Ghost RC Cobra8 1.537 at 89mph tune



New Ghost Cobra 8 tune.

(tune images below)


**caution!! this is a hot tune use at your own risk**


I was playing with this tune most of Sunday, trying to develop a good throttle curve.

I’m still not where I want to be on the top end, but I liked how I was able to hold good power down low. I’m adding too much timing with not enough motor RPM. There is still improvements to be made with the timing and FDR to reduce the top-end amp draw.


Ghost RC Cobra 8 esc and Ghost RC 1480 7000kv motor


Details from my 1.537 @ 89mph pass

Car
Team GFRP Apollo 24

2000w shock oil all round

Springs 8lbs front 9lbs rear

1.5mill diff oil
2171g 40/60 split
Racer RC LS-23w
Straight-line spoilers wing
Unfair racing body braces

Five Star 63T 32p spur
Castle Creations 16T 32p pinion
10.075 FDR


Tires
Rear
Voodoo Gold on showtime medium rims soft/medium foams
Conditioned with Pink Lemonade
Prep’ed with Get Stuck OG
2 coat right after warmers come off then flash with heat gun

1 more coat then flash with heat gun

1 last coat then flash with heat gun

Fronts
Cyrul eXcelerate - LP Front – Extra hard


Electronics
Knuckle Up 8800 Big Dog
Ghost RC Cobra8 Ace ESC
Ghost RC 1408 7000kv motor

Flow pack mini 5 pack

Castle creations 8mm bullets


Radio
Futaba 10px


Thanks for the support.
#blackknightrc
#knuckleup
#teamgfrpapollo
#ghoastrc
#getstuck
#speedyrc
#unfairrc

#RacerRC


Enjoy and work on things that’s going to suit your setup and surface.


Also note; this pass was made on a surface with a very good groove!


tune images below.
