Futaba Images

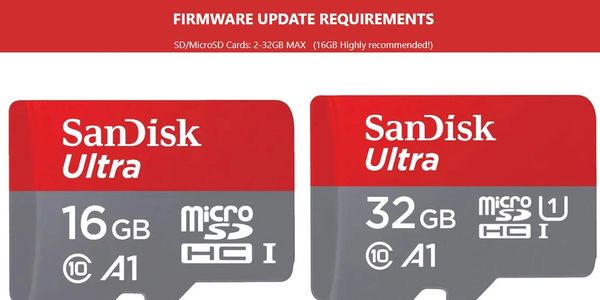

Its KEY to use an SD card that is 16gig or 32gig max.

Anything else and the radio will not read the card.

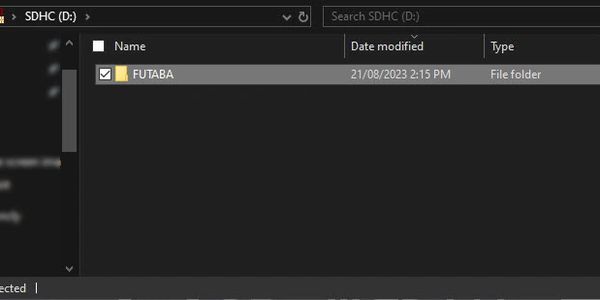

On the SD car you will need a folder called Futaba. If you have performed and update you will find the Futaba folder on the card already

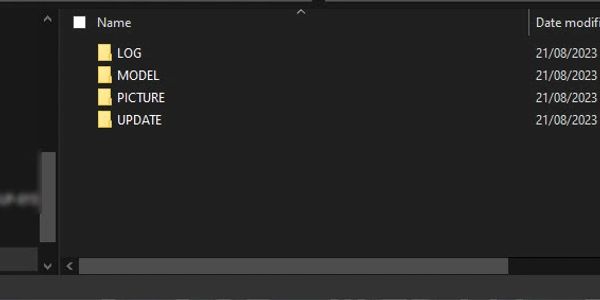

You will need to create a folder called "picture".

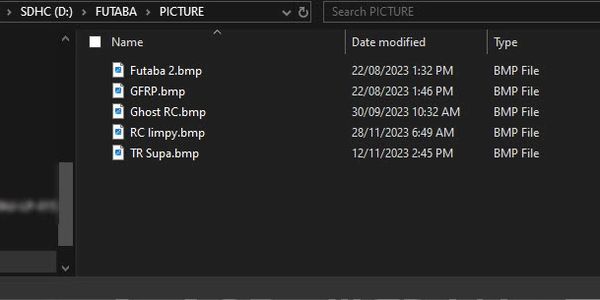

In the "picture" folder save the images you want to use on the radio.

NOTE: It is KEY the files are saved as .BMP

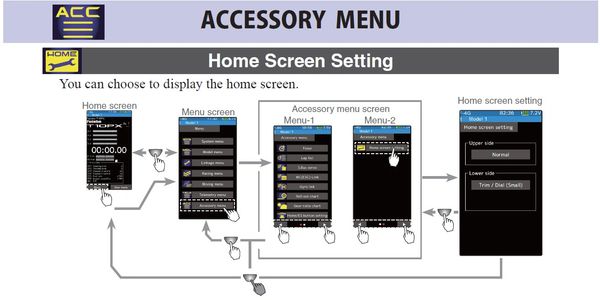

On the radio you will need to change the home screen setting to display the image.

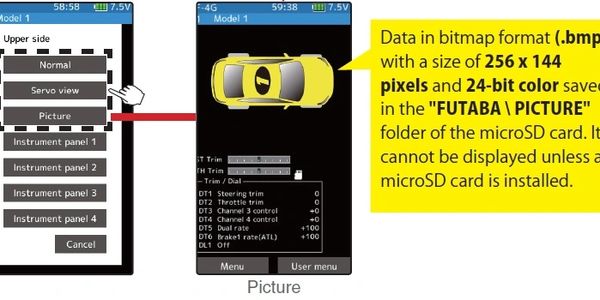

Set the upper  side to picture

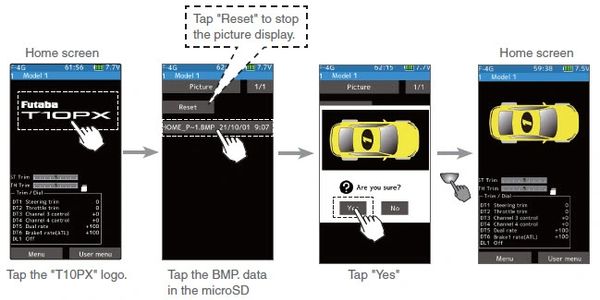

return to the home screen and then select the image to be displayed.
